Intimus SmartShred 16.86 + 870 Level P-2 Industrial Shredder Baler Combination

Save $4,232.15
IntimusSKU: 656144 / 475904

Sale price$45,414.85 Regular price$49,647.00

Product Overview

  • Heavy-duty shredder designed for centralized applications with integrated conveyor belt and baling press
  • Efficiently processes up to 450 sheets simultaneously, achieving a throughput of approx. 1212.54 lbs/h
  • User-friendly touchscreen with PLC offers language selection, error reporting, and maintenance reminders
  • Wide 500mm working width for rapid loading of various paper materials and plastic items
  • Meets security level P-2 standards with a cutting width of 0.39 x 2.76 in for data security
  • Auto-reverse function clears paper jams quickly; push-button control initiates compaction process
  • Indicator signals "Bale complete" for halting cutting process; double strapping ensures bale stability

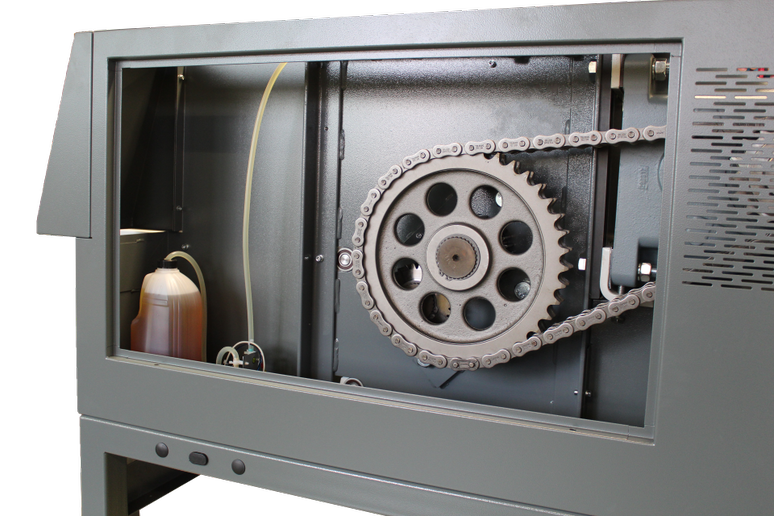

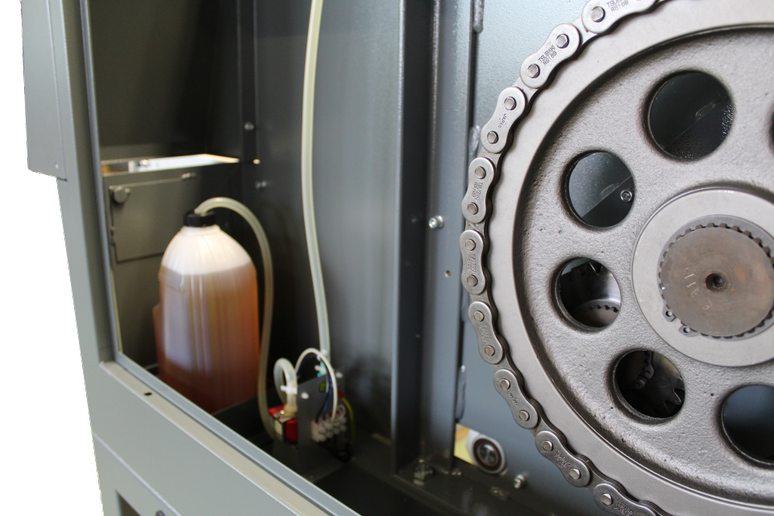

  • Automatic oiler enhances operational efficiency and prolongs equipment lifespan
  • Particles conform to security standard P-2 as per DIN 66399 (ISO/IEC 21964)

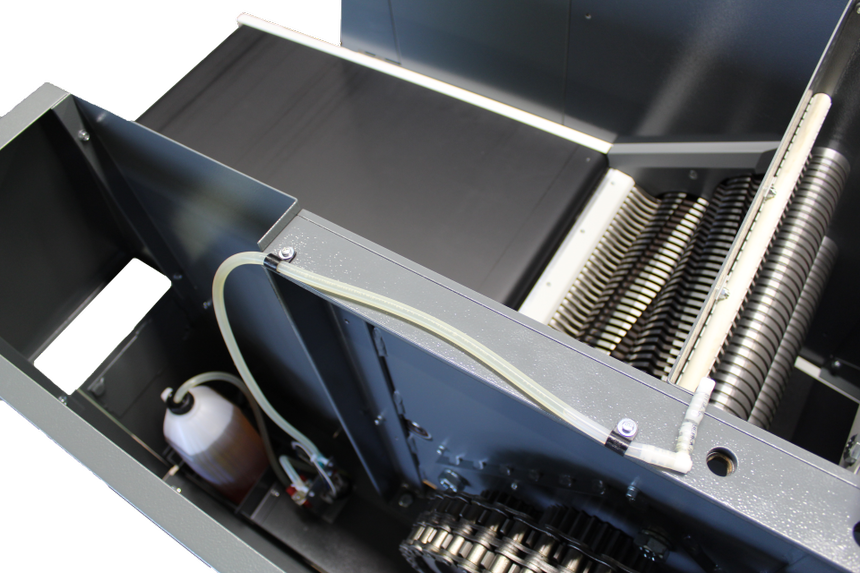

  • Induction-hardened, nitrocarburised solid steel cutting cylinders/shafts ensure durability and extended service life


Data Sheet: PDF File

User Manual: PDF File


Shredder Application Shredder Baler Combinations
Shredder Series Intimus SmartShred
Cut Type Cross Cut
Cut Size 10 mm x 70 mm
Security Level (DIN 66399) P-2 | O-2 | T-2 | E-2
Sheet Capacity up to 520
Shreddable Materials Paper, Paper Clips, Staples, Credit Cards, CDs & DVDs, Floppy Disks, Folders
Feed Width 19.7 inch
Speed 9.5 in/sec
Throughput Up to 1250 lbs per hour
Press Force 9 tons
Bale Weight 130 - 175 lb
Noise Level <61 dB
Recommended no. of users 10+
Power Consumption 10 HP (Shredder), 5.25 HP (Baler)
Electrical Requirement 220 V / 60 Hz
Dimensions (W x D x H) 135 x 48 x 61 inch
Weight 2769 lbs

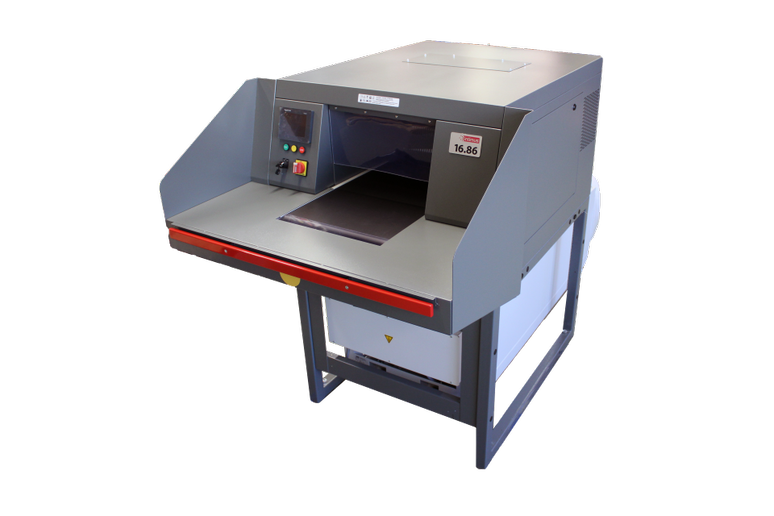

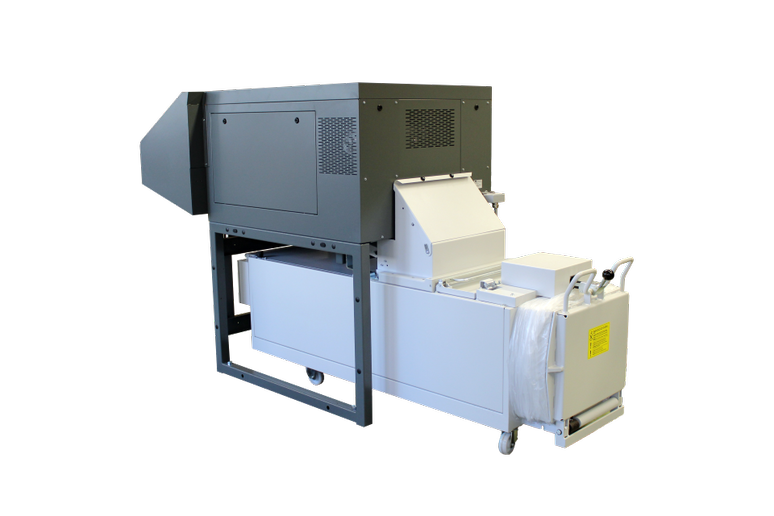

Intimus SmartShred 16.86 + 870 Industrial Shredder Baler Combination

Efficient Waste Management Solution
The Intimus SmartShred 16.86 is a powerful Shredder-Baler combination that revolutionizes waste management by automatically compressing waste into compact bales. This heavy-duty machine is designed to streamline centralized applications, offering high-performance shredding and baling capabilities in one efficient unit.

Streamlined Operations
Equipped with an integrated conveyor belt and baling press, the Intimus 16.86 SmartShred effortlessly handles up to 450 sheets simultaneously, delivering an impressive throughput of approximately 1212.54 lbs per hour. Its user-friendly touchscreen interface and programmable logic controller (PLC) provide valuable functionalities such as language selection, error reporting, and maintenance reminders, ensuring smooth and efficient operations.

Shredding Capabilities
Meeting security level P-2 standards, this shredder guarantees data security with a cutting width of 0.39 x 2.76 inches. It can effectively shred various paper materials, including loose, stapled, bound, crumpled, and even entire folders, as well as small quantities of plastic materials like credit cards, CDs, and floppy disks.

Operational Efficiency
The Intimus SmartShred 16.86 features an auto-reverse function to quickly clear paper jams, while the automatic oiler enhances operational efficiency and prolongs the equipment's lifespan. With a broad 500 mm working width and a sturdy metal housing, this shredder offers convenient and rapid document processing with minimal downtime.

Safety and Durability
Safety features such as an emergency stop bar, emergency stop switch, and lockable main switch ensure operator safety during operation. The induction-hardened, nitrocarburised solid steel cutting cylinders/shafts guarantee durability and an extended service life, making the Intimus SmartShred 16.86 a reliable investment for long-term use.

Product Video

(cutting size and specifications may differ in series)
