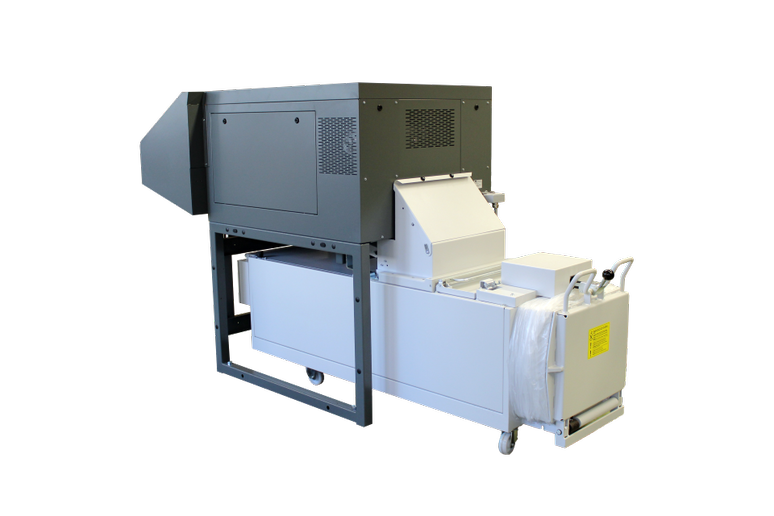

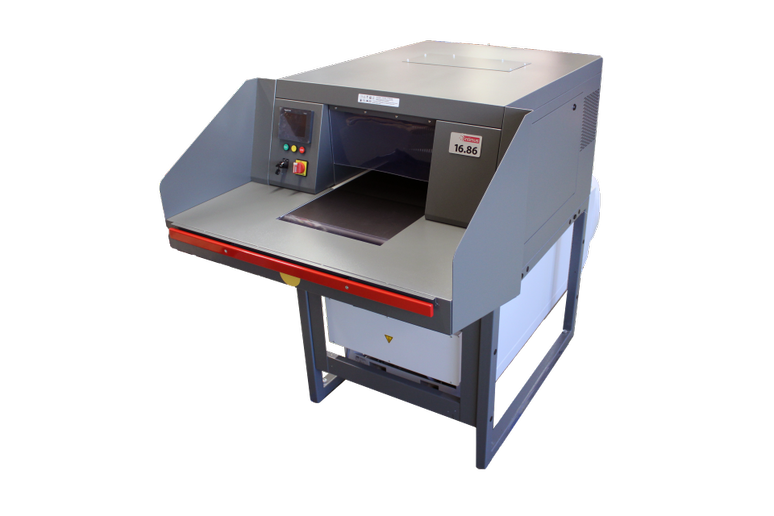

Intimus SmartShred 16.86 + 870 Level P-3 Industrial Shredder Baler Combination

Save $1,751.75
IntimusSKU: 656124 / 475904

Sale price$46,871.25 Regular price$48,623.00

Product Overview

  • Combines heavy-duty shredder with industrial baler for automatic waste compression into compact bales.
  • Equipped with a PLC-based touchscreen for easy operation and valuable information display.
  • Handles up to 290 sheets simultaneously with a throughput of approx. 1058.22 lbs/h.
  • 19.69 in working width for convenient and rapid loading of various paper materials.
  • Meets security level P-3 standards for data security with a cutting width of 0.24 x 1.97 in.
  • Auto-reverse function for swift paper jam clearance and push-button control for bale retrieval.

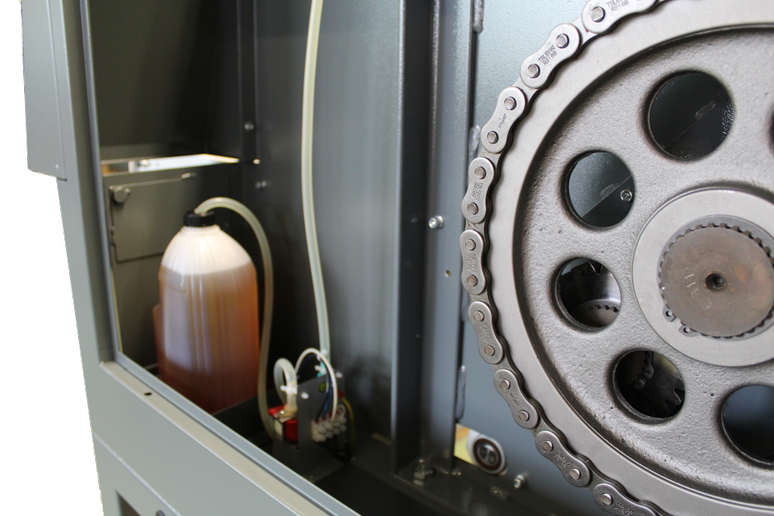

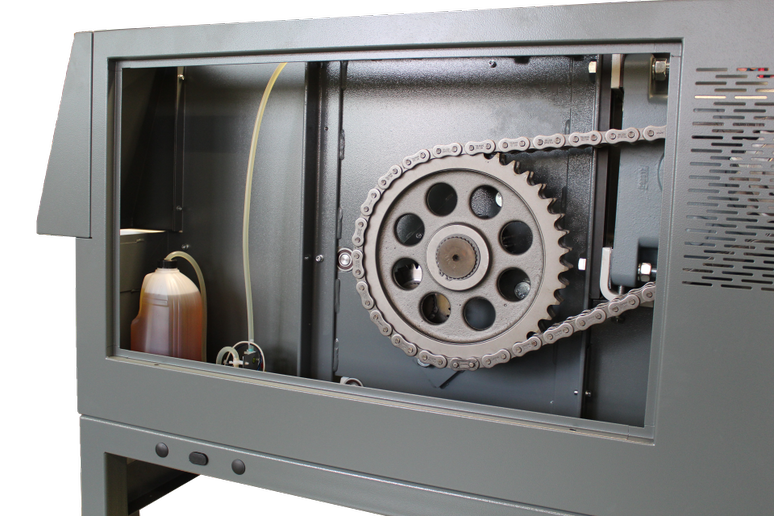

  • Intelligent automatic oiler enhances operational efficiency and equipment lifespan.
  • Compact shredded material into bales to reduce volume by up to 70%.

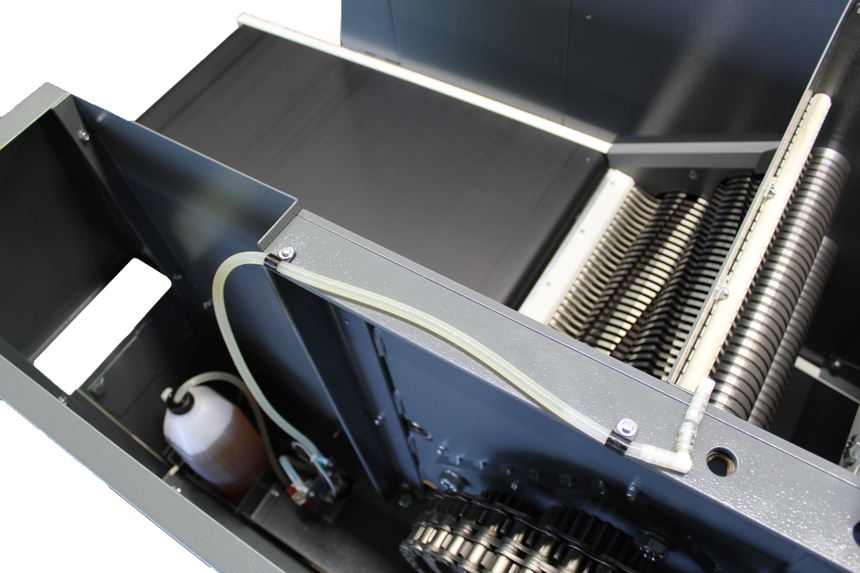

  • Induction-hardened, nitrocarburised solid steel cutting cylinders ensure durability.
  • Features emergency stop bar, switch, and lockable main switch for added safety.


Data Sheet: PDF File

User Manual: PDF File


Shredder Application Shredder Baler Combinations
Shredder Series Intimus SmartShred
Cut Type Cross Cut
Cut Size 6 mm x 50 mm
Security Level (DIN 66399) P-3 | O-3 | T-3 | E-2
Sheet Capacity up to 330
Shreddable Materials Paper, Paper Clips, Staples, Credit Cards, CDs & DVDs, Floppy Disks, Folders
Feed Width 19.7 inch
Speed 9.5 in/sec
Throughput Up to 1050 lbs per hour
Press Force 9 tons
Bale Weight 130 - 175 lbs
Noise Level <61 dB
Recommended no. of users 10+
Power Consumption 130 - 175 lbs
Electrical Requirement 220 V / 60 Hz
Dimensions (W x D x H) 135 x 48 x 61 inch
Weight 2769 lb


Intimus SmartShred 16.86 Industrial Shredder + 870 Baler
The Intimus SmartShred 16.86 is a powerful Shredder-Baler Combination that revolutionizes document disposal and waste management. By combining a heavy-duty shredder with an efficient baler, this machine offers a seamless process that automatically compresses waste into compact bales, reducing volume by up to 70%.

Efficient Document Shredding and Compaction
The Intimus 16.86 SmartShred features a broad 19.69-inch working width, allowing for rapid loading and shredding of various paper materials, including loose, stapled, bound, or crumpled documents. It can also handle small quantities of plastic materials such as credit cards, CDs, and floppy disks. With a high throughput of approximately 1058.22 lbs per hour, this machine ensures efficient document processing.

Advanced Functionality for Ease of Use
Equipped with a user-friendly touchscreen and programmable logic controller (PLC), the SmartShred 16.86 offers a range of functionalities to streamline operation and maintenance. From language selection to error reporting and maintenance reminders, this machine simplifies the shredding and baling process. An auto-reverse function clears paper jams quickly, while the automatic oiler enhances operational efficiency and prolongs equipment lifespan.

Enhanced Safety Features
Safety is paramount with the Intimus SmartShred 16.86. It includes an emergency stop bar, emergency stop switch, and lockable main switch to ensure operator safety in any situation. The sturdy metal housing and induction-hardened solid steel cutting cylinders/shafts guarantee durability and long-lasting performance.

Compact and Secure Waste Management
With the Intimus 16.86 SmartShred, shredded materials are compacted into bales, significantly reducing their volume. The machine meets security level P-3 standards, providing peace of mind regarding data security. The bale completion indicator, double strapping, and push-button control for bale retrieval ensure a secure and efficient waste management process.

Product Video

(cutting size and specifications may differ in series)
